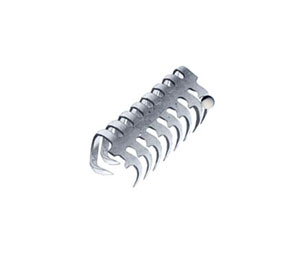

Salsons hasa complete range of Conveyor Belt Fasteners Plate Hawk Jackson Type for domestic and exports markets as per IS:10288:1982 for Joining rubber conveyor belts used in Mining, Cement, Steel, Thermal, Chemical Plants, Qerrying, Road Constructions, Stone Crushing, Food, Sand & Granules etc.
Available Sizes No. 1, 1.5, 2, 2.5 & 3
Technical Specifications: The plates and retaining clip are manufactured from cold rolled carbon steel sheet or strip conforming to grade D of IS : 513-1973 Specification for cold rolled carbon steel sheet (second revision) 01 Grade D of IS : 4030-1973 Specification for cold rolled carbon steel sheet strip for general engineering purposes. These are Zinc Plated for longer life and rust preventions. Specially formed teeth penetrate belt carcass without damaging conveyor belts’ fiber.
| Size | Composition |
| 1/4 x 1" | 14 G All Steel |
| 5/16 x 1 1/4" | 14 G All Steel |
| 3/8 x 1 1/2" | 14 G All Steel |
| 5/16 X 1 1/4" | 14 G All Steel |
| 5/16 x 1 1/2 | 14 G All Steel |
| 5/16 x 2" | 14 G All Steel |
| 3/8 X 1 1/2" | 14 G All Steel |
| 3/8 x 2" | 14 G All Steel |
| 3/8 X 2 1/2" | 14 G All Steel |
| 3/8 X 3" | 14 G All Steel |
| 7/16 X 13/4" | 14 G All Steel |
| No. | No. of Pcs. |
| 15 | 16 |
| 20 | 10 |
| 25 | 16 |
| 27 | 16 |
| 35 | 8 |
| 45 | 8 |
| 55 | 8 |
| 65 | 8 |

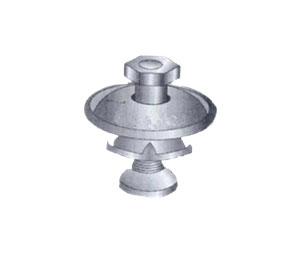

Available Sizes No. 6, 8 , 10 & 12 Japan type & German type
