LINK V-BELTS

Link V-Belting is widely used in industries for coupling transmission systems together. Although considerably more expensive than ordinary V-Belts it does have some important advantages:

Advantages of Salsons Link V-Belts (T-Link)

  • It can be installed without having to dismantle the drive system and spend hours pulling apart well set-up or bedded in components
  • It absorbs vibration and is recommended for drives where the transmission of vibrations from the motor or other sources are undesirable – for e.g. in precision grinding machines and high speed lathe
  • spindles
  • It is of very high quality and claimed to have improved shock loading capacity and improved abrasion, oil, chemicals, damp and heat resistance
  • It fits all standard pulleys - there is no need to replace or modify the existing setup
  • Adjustments to tension and complete belt replacement can be made without moving the pulleys

It is available in all normal sizes and comes in a variety of types.


Technical Data

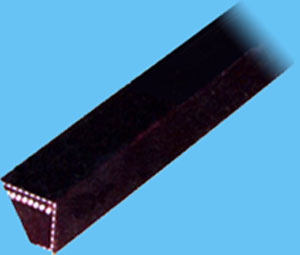

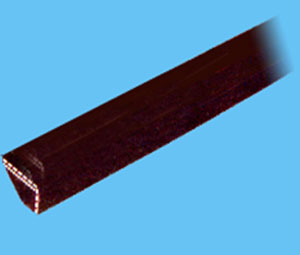

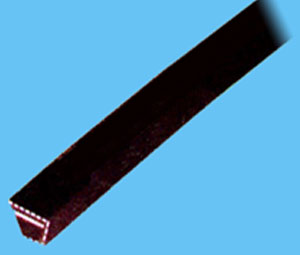

CLASSICAL V-BELT
Section 8 Z/M A B 20 C 25 D E
Top Width (mm) 8 10 13 17 20 22 25 32 38
Thickness (mm) 5 6 8 11 12.5 14 16 19 23
Angle(°) 40 40 40 40 40 40 40 40 40
Size-Range (mm) 350/1200 350/3800 380/8500 480/1400 1600/5000 800/14000 1600/12500 1120/15200 3550/17750

WEDGE  V-BELT
Section SPZ SPA SPB 19 SPC
Top Width (mm) 10 13 17 19 22
Thickness (mm) 8 10 14 15 18
Angle(°) 40 40 40 40 40
Size-Range (mm) 380/3550 750/4500 1250/10,000 1800/8000 2000/12500

 NARROW V-BELTS
Section 3V 5V 8V
Top Width (mm) 9.7 15.8 25.4
Thickness (mm) 8 13.5 23
Angle(°) 40 40 40
Size-Range (mm) 380/3550 1950/10000 1750/12500
